Pressure
Bending tonnage. Pressure controls the force applied during the bend; it is not another positioning slide.
Carter Machinery / press brakes
24
24-month warrantyParts and labour on new machines
◇
Fiessler laser guardingOperator protection at the tooling
↗
Commissioning & trainingBasic operator training included
⌁
UK supportSales, service and spare parts
Carter Bend Studio / on this machine
See your part.
Understand the machine.
Backgauge view
Moves with the main viewUnderstand the movements
Take this component further
One part. Tools, machine and quotation.
Keep your dimensions and bend order as you compare machines, explore Euram tooling and build your quotation.
Illustrative machine and sampled tool-section checks. Final capacity, tooling, gauging and full-machine clearances require a setup review.
Control that suits your work

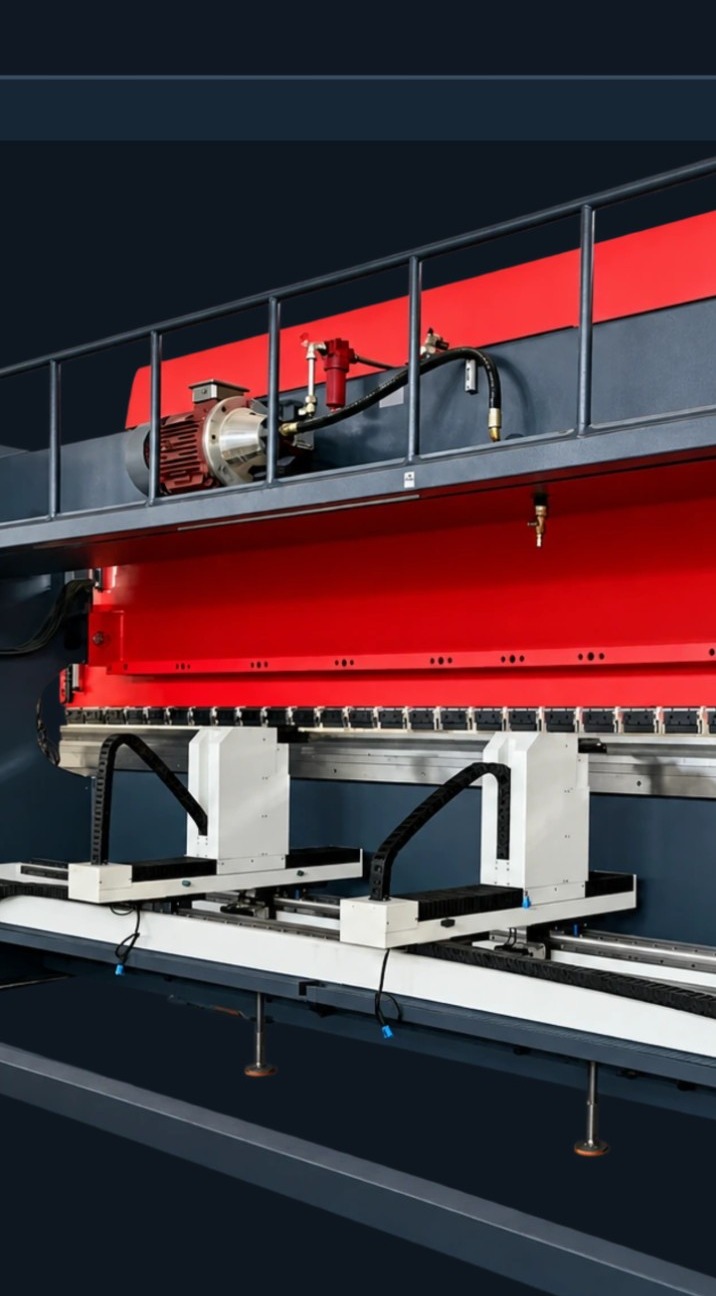

Independent backgauge
Two fingers.
Individual positioning.
Position each backgauge finger independently in depth, height and across the machine. This gives you more flexibility when gauging asymmetric components and setting up demanding folded parts.
- X1 / X2
- Independent depth towards or away from the bend line.
- R1 / R2
- Independent vertical height.
- Z1 / Z2
- Powered sideways positioning along the machine.
Carter Bend Studio
Bring your next
component into view.
Choose a profile or draw your own. Explore the shape in 2D and 3D, step through the bends and take a dimensional drawing into your discussion with Carter.
Choose your control
NC or CNC?

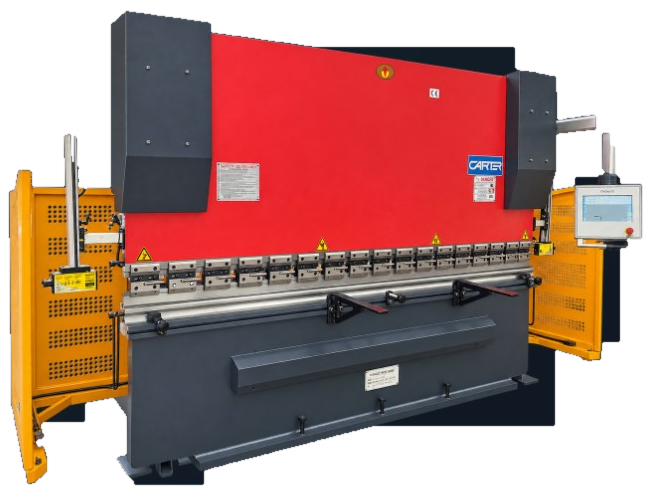

Choose straightforward Y/X control, programmable five-function CNC, or independent ten-function CNC for more demanding gauging setups.
| Function | 2-axis NC | 5-axis CNC | 10-axis CNC |
|---|---|---|---|
| Ram position | Y | Y | Y1 / Y2 |
| Backgauge depth | X | X | X1 / X2 |
| Powered backgauge height | — | R | R1 / R2 |
| Sideways finger positioning | Manual Z | Manual Z | Z1 / Z2 |
| Pressure (bending tonnage) | Manual setting | P | P |
| Anti Deflection System / crowning | No crowning | ADS | ADS |
| Control | NC | Graphical CNC | Graphical CNC |
What do you need to bend?
Tell us your material, thickness and bending length. We’ll help you choose the capacity, control and tooling for the job.
Carter Machinery / design tools
Carter Bend Studio
Draw your profile. Calculate a bend sequence. Explore the tooling and machine for your work.
Top hatDimensional profile
Tap to place points; dimensions remain editable.
Select a template or use Free Draw to create a section.
3D bend sequenceReady to bend
1010 punch / 2009 dieShow tooling side section
Plan your bends
Calculate a sequence for your tooling
Search alternative bend orders and both part orientations, or arrange the operations below.
What this result checks
The search currently completes each bend in one hit. Candidate sequences are screened against the selected tool sections and overlapping sheet segments during approach, forming and retraction. Tool outlines and sharp-corner part geometry are approximate. Whole-machine clearance, upper clamping, gauging, tooling load, bend radii and movement between operations need a setup review.
Your componentTop hat
The forming profile updates with the same sequence shown above.
Estimated flat patternCut outline and bend positions
mmDevelopment is an estimate. Confirm bend allowances against your tooling and test bends before cutting.
Euram toolingExplore profiles, check your part and enquire
Find a punch, die or holder by its reference. Selected profiles can be used in Bend Studio to explore the sequence for your component.
ProfileTop hat
Bends4
Estimated flat width—
Part length1,000 mm
Bend Studio checks the drawn tool cross-sections and sheet thickness. The full machine, upper holders and part-removal path are not collision-checked. Lower-holder profiles are preliminary; unspecified supports are schematic. Confirm the complete setup and development before manufacture.
From your component to your workshop
Find the machine for your work
Reference bending force
With capacity allowance
Required bending length
Recommended capacity option
Material strength & sizing assumptions
Use the actual material certificate where available. Reference force follows the Carter air-bending guide. Listed CNC capacities follow the Carter size range. The NC match currently covers the known 3400 × 125T size. Opening height, throat, between-frame clearance and load distribution are confirmed in a setup review.
Your selected tooling
View tooling details →Punch and die lengths use the catalogue’s solid sections. Holders use their own listed lengths and must support the full installed die run. Holder layout, machine fit, availability and prices are confirmed in your quotation.

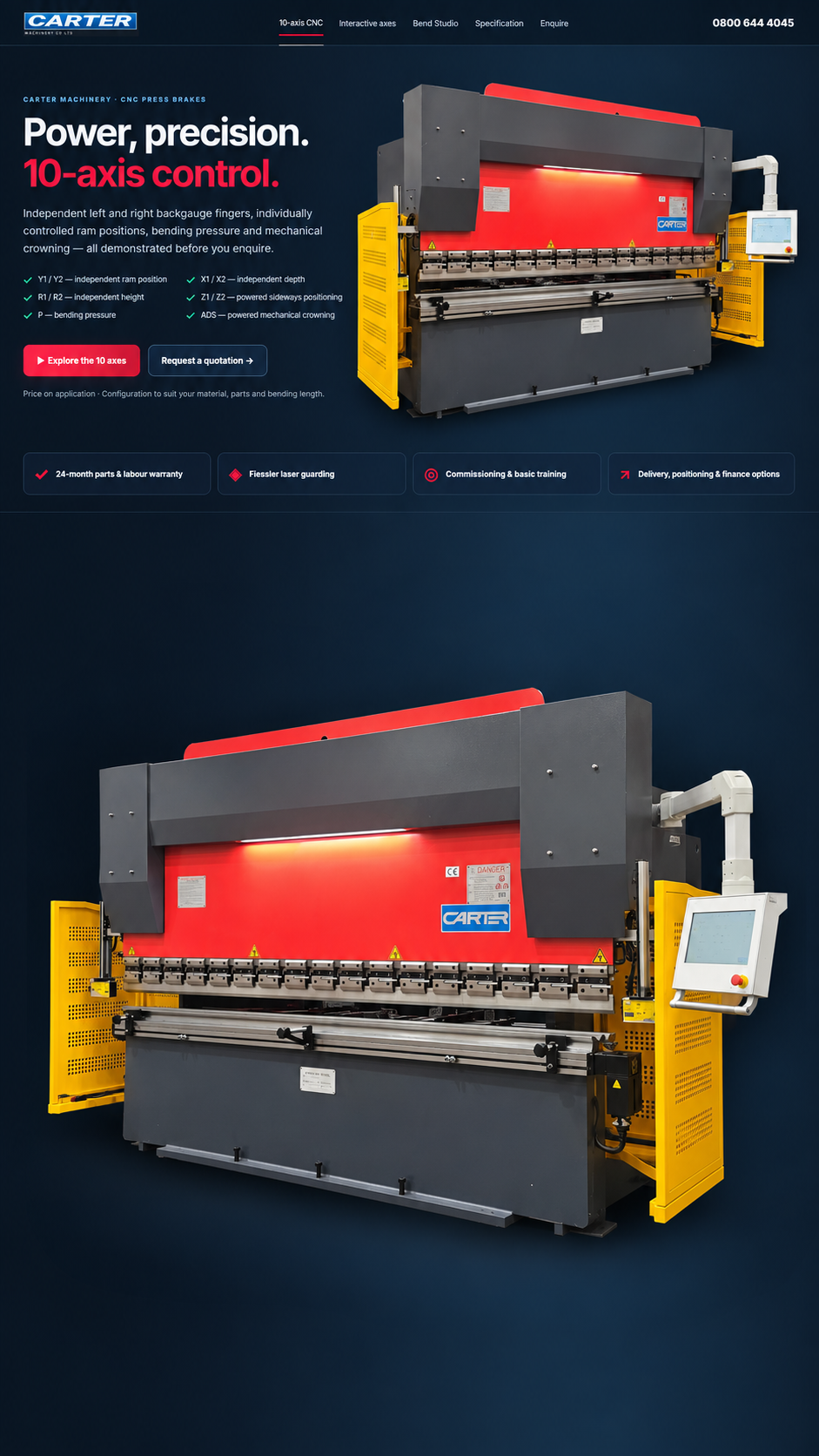

Explore the Carter 10-axis CNC press brake
Carter Machinery / understand the control
Every function.
A clear purpose.
See how the ram, backgauge, pressure and crowning work together. Choose a machine and select a function to explore its movement.
Backgauge movementsInteractive 3D view
View movement directions in section
X moves in depth; R moves vertically; Z moves sideways along the machine. Demonstration settings show relative travel.
Anti Deflection System
Mechanically powered lower-beam crowning, used to compensate for beam deflection across the bending length.
See it in the context of your work.
Explore a component in Bend Studio, or ask Carter to demonstrate the machine for your application.
Carter Machinery / talk to us
Let’s find the
right press brake.
Share your material, thickness, bending length and typical components. We’ll help you choose the machine and tooling for your work.
- 24-month parts and labour warranty on new machines
- Commissioning and basic operator training
- Delivery, offloading and positioning available
- Finance and part-exchange enquiries welcome
