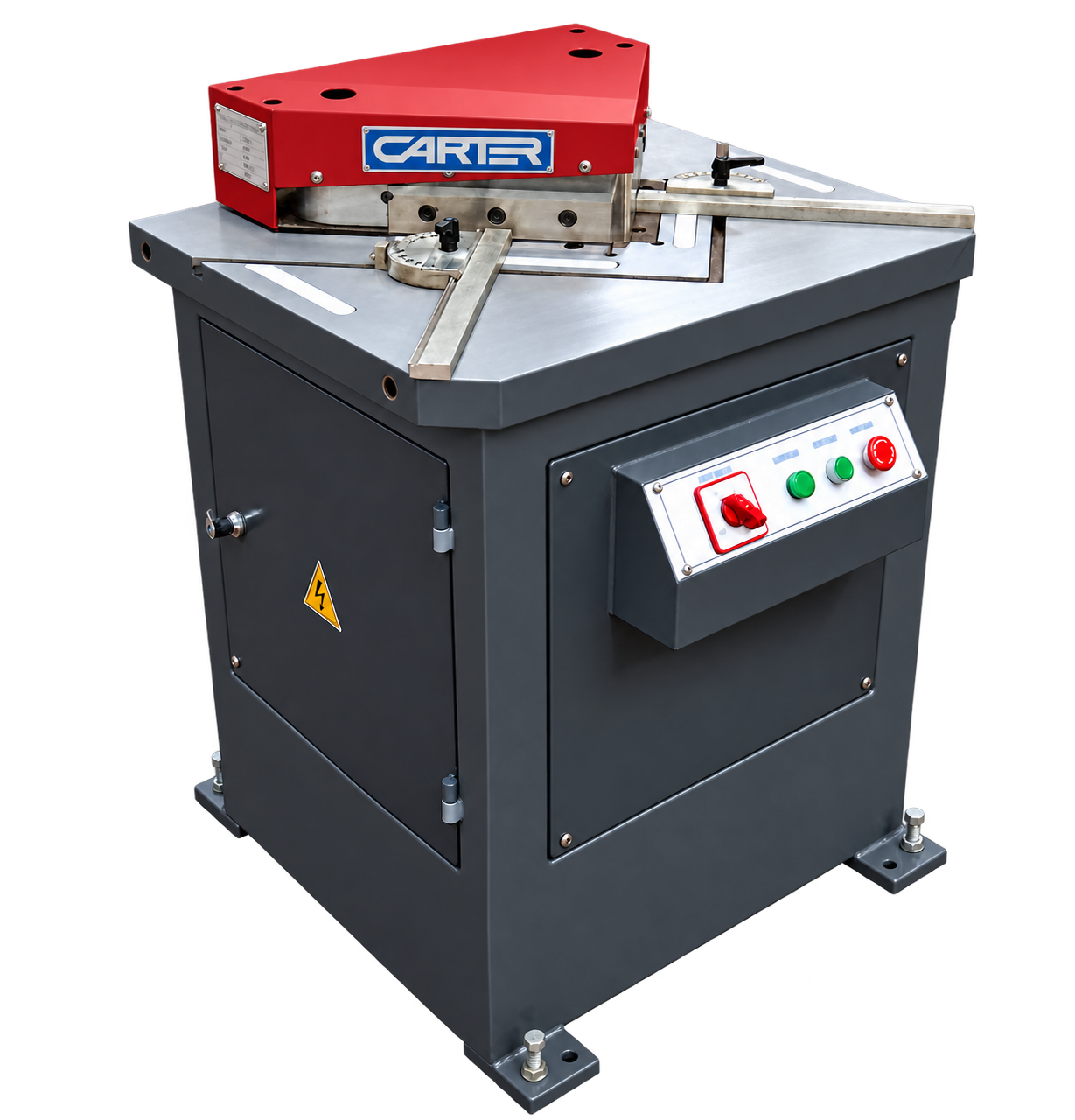

Carter hydraulic corner notchers
Fixed-angle and variable-angle hydraulic corner notchers. Compare the existing 250 × 250 mm range with adjustable 30°–140° notching.
Fixed-angle hydraulic corner notchers
Prices exclude delivery. Ask us to confirm availability, lead time and the exact equipment for your selected machine.
| Capacity | Supply | Price + VAT | Including VAT | Enquire |
|---|---|---|---|---|
| 250 × 250 × 4 mm | 415 V three-phase | £4,628.33 | £5,554 | Request quote → |
| 250 × 250 × 6 mm | 415 V three-phase | £5,625 | £6,750 | Request quote → |
| 250 × 250 × 8 mm | 415 V three-phase | £7,291.67 | £8,750 | Request quote → |
Capacities are stated as working length × material thickness; notchers show notch length × notch width × thickness. Single-phase supplies apply only to the versions explicitly marked above.
Fixed-angle machine details
Fixed-angle corner notching for sheet metal fabrication.

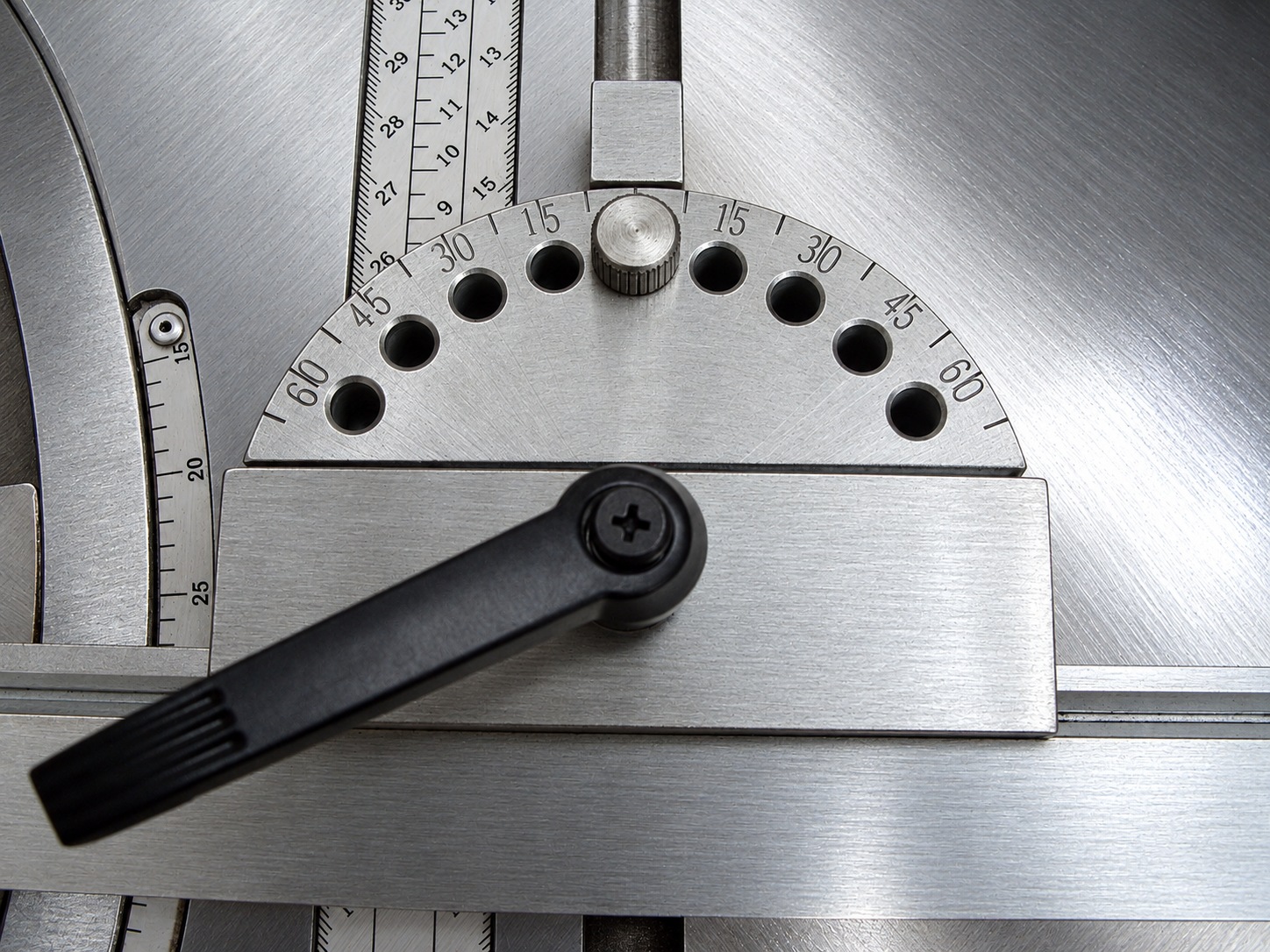

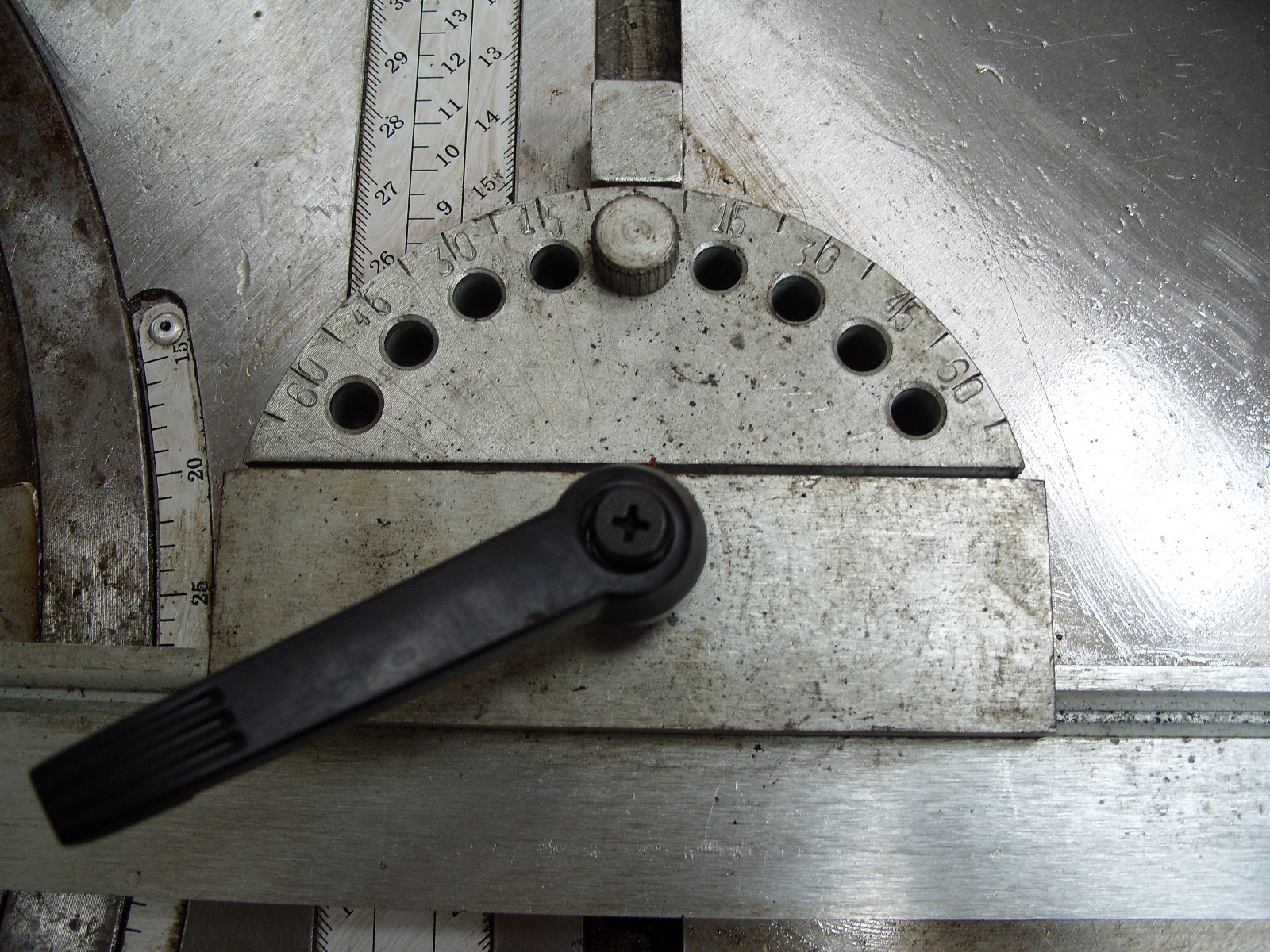

Supplied with rules, guides and scales for positioning the sheet.
Choose the thickness capacity for your material; confirm tooling and delivery with your quotation.
Variable-angle hydraulic notcher · 6 mm
Set the cutting angle from 30° to 140°. Sheet-location guides and a hold-down help position the work, with a separate foot-pedal control.
- Cutting angle
- 30°–140°
- Maximum cutting length
- 200 mm
- Maximum stated thickness
- 6 mm
- Maximum punch diameter
- 40 mm
- Maximum stroke
- 42 mm
- Motor power
- 4 kW
- Machine dimensions
- 1060 × 900 × 1210 mm
- Net weight
- 1020 kg
POA Price on application
Request a quotationConfirm material grade, punching capacity, included tooling, electrical supply and delivery with your quotation.
Take a closer look.
Looking for tube notching?
Explore our motor-driven tube notcher for tube-end preparation.
Compare the rangeTalk to Carter.
Send your material, dimensions and delivery postcode for a quotation.
Your machine package
All new machines include a 24-month parts-and-labour warranty. Ask about part exchange, finance, delivery, offloading and positioning when requesting your quotation.
Finance is subject to approval. Delivery, handling and positioning are quoted for your machine and site.
